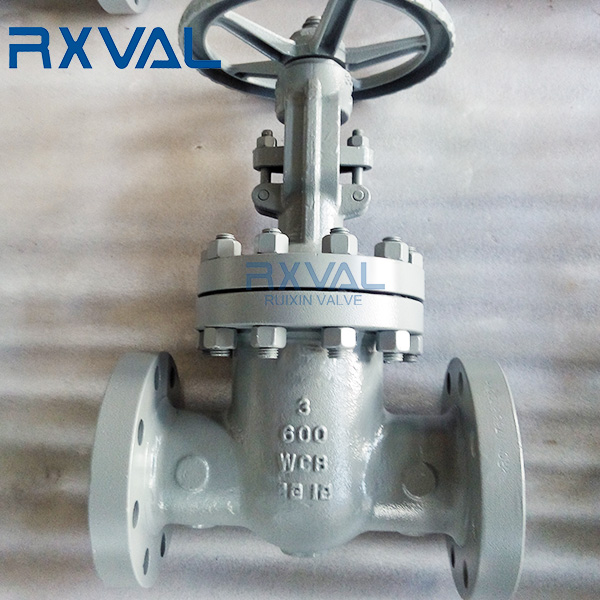

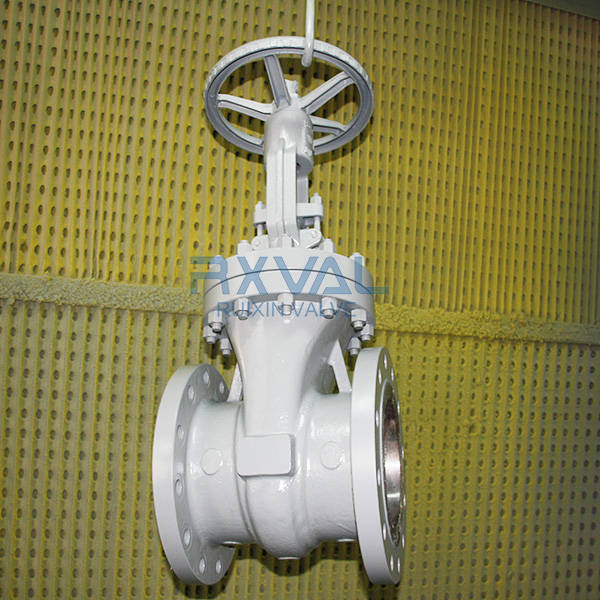

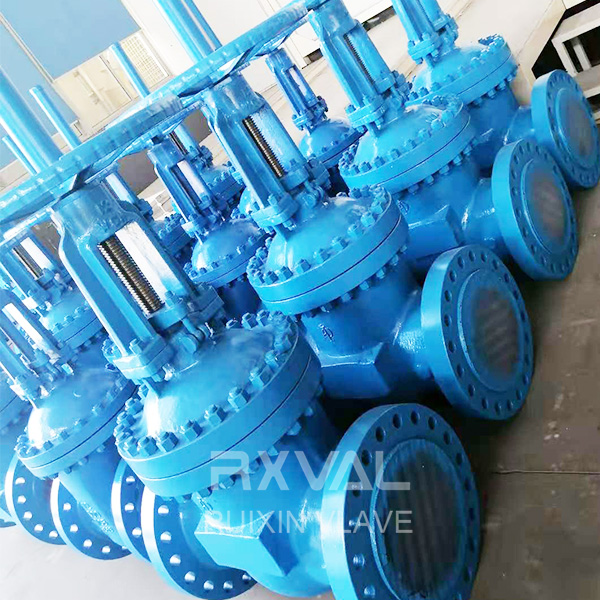

Wholesale Price Ductile Cast Iron Metal Seated Gate Valve

Short Description:

Size 2 “ - 48 ”
Pressure 150LB-2500LB
End Connection Flange (FLG) RF or RTJ. BW
Bore Full Bore
Body Material A216 WCB, WCC,LCB,LCC,WC6,WC9,C5,CF8,CF8M.CF3,CF3M,4A,5A,F51
Design API 600
Face to Face ANSI B16.10
End Flange 2”-24” to ANSI B16.5 / 26”-48” to MSS SP-44 /API 605
BW Ends ANSI B16.25
Checking & Test API 598
Pressure-Temperature ASME B16.34
Operation By Lever, By Gear, By Electric or Pneumatic Actuator
Nace NACE MR-01-75

Product Detail

Product Tags

As for aggressive selling prices, we believe that you will be searching far and wide for anything that can beat us. We are able to state with absolute certainty that for such good quality at such costs we’ve been the lowest around for Wholesale Price Ductile Cast Iron Metal Seated Gate Valve, We Sincerely welcome clients from all around the entire world to visit us, with our multifaceted cooperation and get the job done with each other to develop new markets, build win-win outstanding future.
As for aggressive selling prices, we believe that you will be searching far and wide for anything that can beat us. We are able to state with absolute certainty that for such good quality at such costs we’ve been the lowest around for China Gate Valve and Ductile Iron Gate Valve, Our items are exported worldwide. Our customers are always satisfied with our reliable quality, customer-oriented services and competitive prices. Our mission is “to continue to earn your loyalty by dedicating our efforts to the constant improvement of our items and services in order to ensure the satisfaction of our end-users, customers, employees, suppliers and the worldwide communities in which we cooperate”.

Material Specification

huh-1

No.

Part

Material

1

Body

ASTM A216 WCB

2

Seat

ASTM A105+13Cr

3

Wedge

ASTM A216 WCB+13Cr

4

Stem

ASTM A182 F6a

5

Gasket

304+Flexible Graphite

6

Bonnet Bolt

ASTM A193 B7

7

Nut

ASTM A194 2H

8

Bonnet

ASTM A216 WCB

9

Back Seat

ASTM A276 410

10

Packing

Flexible Graphite

11

Gland

ASTM A276 410

12

Gland Flange

ASTM A216 WCB

13

Pin

CS

14

Eyebolt

ASTM A193 B7

15

Nut

ASTM A194 2H

16

Stem Nut

ASTM A536 FCD45

17

Clamp Nut

ASTM A29 1025

18

Handwheel

ASTM A47 32510

19

Lock Nut

ASTM A29 1035

20

Screw

ASTM A29 1035

21

Lubricating Cap

Component Part

22

Rivet

SS

23

Name Plate

SS

More Information

Payment Term L/C, T/T, Western Union,Paypal
Delivery Time 15 – 30 days after payment
Seaport Shanghai Or Ningbo China
The 3rd Inspection Available
Sample Available for API cast steel Flange gate valves
Warranty Period 18 months after shipments and 12 months after installed
Valve Test 100% quantity tested before delivery
Packing Plywood Case for API cast steel Flange gate valves
MOQ 1 Pc for API cast steel Flange gate valves
Nameplate According to customer for API cast steel Flange gate valves
Color According to customer for API cast steel Flange gate valves
Shipment By sea,By Air ,By Express,and door to door available
OEM/ODM Service Available

Pressure Testing Standard for the gate Valve

As for aggressive selling prices, we believe that you will be searching far and wide for anything that can beat us. We are able to state with absolute certainty that for such good quality at such costs we’ve been the lowest around for Wholesale Price Ductile Cast Iron Metal Seated Gate Valve, We Sincerely welcome clients from all around the entire world to visit us, with our multifaceted cooperation and get the job done with each other to develop new markets, build win-win outstanding future.
Wholesale Price China Gate Valve and Ductile Iron Gate Valve, Our items are exported worldwide. Our customers are always satisfied with our reliable quality, customer-oriented services and competitive prices. Our mission is “to continue to earn your loyalty by dedicating our efforts to the constant improvement of our items and services in order to ensure the satisfaction of our end-users, customers, employees, suppliers and the worldwide communities in which we cooperate”.
