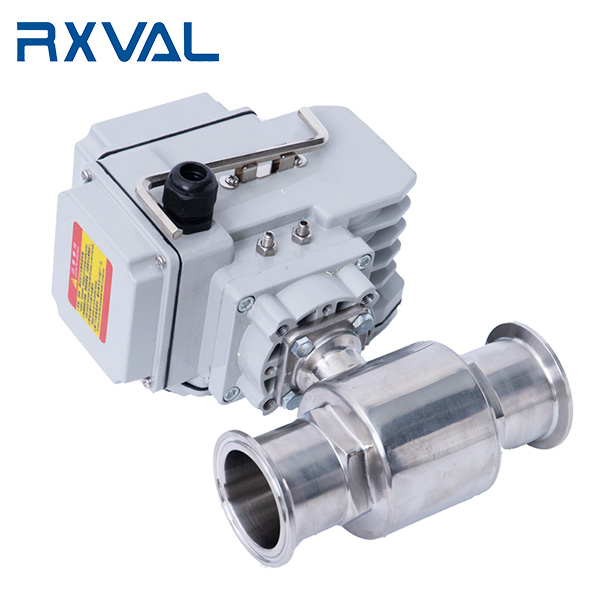

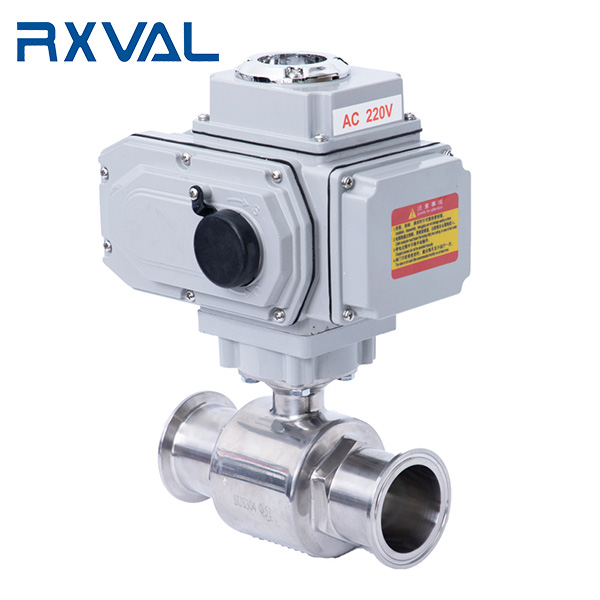

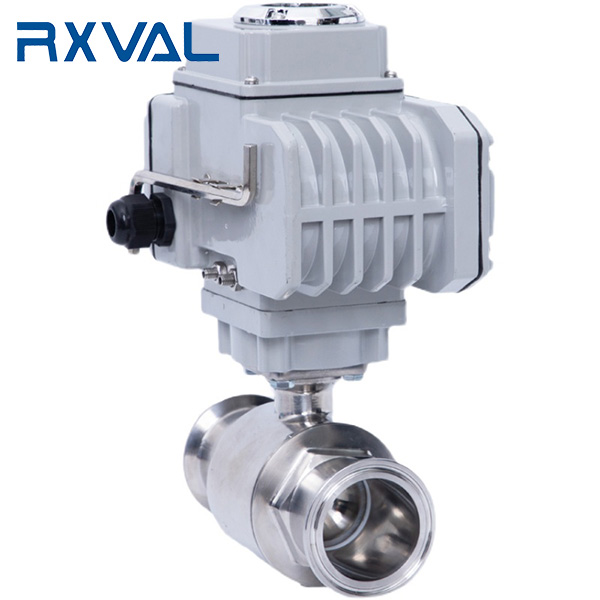

Sanitary Ball Valve with actuator
Features
Sanitary ball valve is polished inside and out. Clamp ends allow for easy disassembly to clean, repair or replace parts as necessary.
Sanitary ball valve with actuator is used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow.
Sanitary ball valve is polished inside and out.
Clamp ends allow for easy disassembly to clean, repair or replace parts as necessary.
Disc fully machined and polished
Easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad.
All materials comply with FDA, USDA and 3-A requirements
SMS sizes
|
Size |
Outside Diameter(OD) |
|
Φ19 |
19mm |
|
Φ25 |
25.4mm |
|
Φ32 |
31.8mm |
|
Φ51 |
50.8mm |
|
Φ63 |
63.5mm |
|
Φ76 |
76.2mm |
|
Φ89 |
89mm |
|
Φ102 |
101.6mm |
|
Φ108 |
108mm |
Sanitary ball valves are also called as hygienic ball valve which is opened by turning handles attached to balls inside the valves. The ball has a hole or port through the middle.
When the port is in line with both ends of the valve, flow will occur. When the valve is closed, the hole is perpendicular to the ends of the valve, and flow is blocked. A ball valve is durable and usually work to achieve perfect shutoff even after years of disuse.
Advantage
1 The structure of Sanitary ball valves is simple, the weight and volume are relatively small, and it is easy to disassemble and repair.
2 Since the valve stem only rotates, the packing seal of the valve stem is not easily broken, and the sealing capacity increases as the medium pressure increases.
3 The fluid resistance is small, and the full-bore ball valve has substantially no flow resistance. Pneumatic ball valves are one of the least fluid resistances in all valve classifications.
4 The operation is simple and rapid, and it only needs to be rotated by 90° from full opening to full closing, which is convenient for long-distance control.
5 It is suitable for a wide range of applications, from a few millimeters to a few meters, from high vacuum to high pressure.
Package
More Information
| Payment Term | L/C, T/T, Western Union,Paypal |
| Delivery Time | 15 - 30 days after payment |
| Seaport | Shanghai Or Ningbo China |
| The 3rd Inspection | Available |
| Sample | Available for Sanitary Ball Valve with actuator |
| Warranty Period | 18 months after shipments and 12 months after installed |
| Valve Test | 100% quantity tested before delivery |
| Packing | Plywood Case for Sanitary Ball Valve with actuator |
| MOQ | 1 Pc for Sanitary Ball Valve with actuator |
| Nameplate | According to customer for Sanitary Ball Valve with actuator |
| Color | According to customer for Sanitary Ball Valve with actuator |
| Shipment | By sea,By Air ,By Express,and door to door available |
| OEM/ODM Service | Available |
For almost 10 years, RXVAL has continually committed itself to offer the best Sanitary Ball Valve with actuator products to meet a wide range of applications and requirements.
As an valve manufacturer, RXVAL has your perfect Sanitary Ball Valve with actuator solution. Our success in the valves industry is attributed to our customer-centric team of sales personnel, engineers, workers and after-service staff that are collectively committed to providing quality products at a price you would come to expect.
