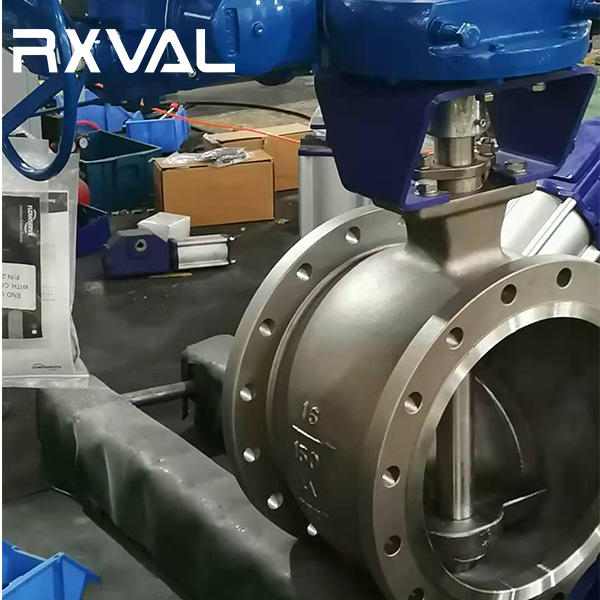

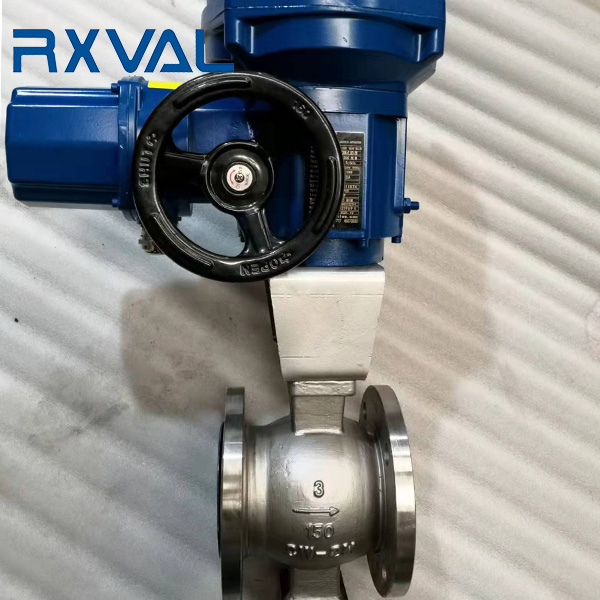

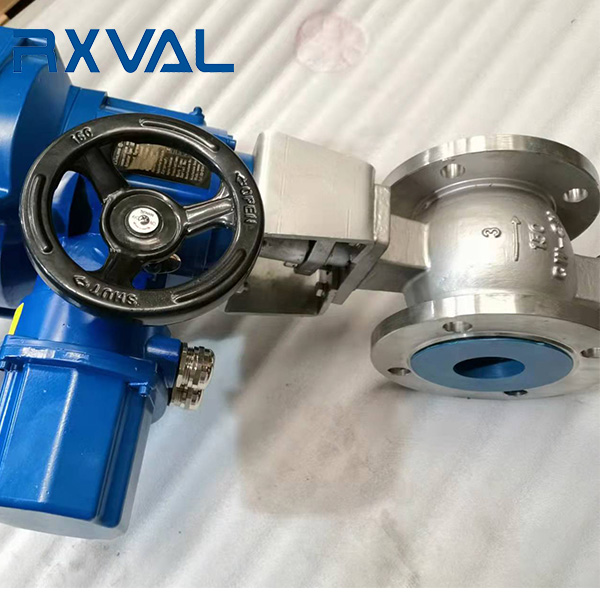

Massive Selection for China Tee Type Flange Three Way Segment Ball Valve 3 Ways Valve

Short Description:

Size 1  - 20   ( Flange End)
1  - 10  ( Wafer End)
Pressure 150LB-600LB
End Connection Flange
Bore Full or Reduce Bore
Body Material Carbon Steel, Stainless Steel, Special Alloy
Ball Material  Stainless Steel, Special Alloy
Seat Material  Stainless Steel+STL, PCTFE,PEEK (Flange)

Stainless Steel+STL (Wafer)

Face to Face  ISA S75.04, IEC/DIN 534-3-2 (Flange)
Factory Standard (Wafer)
End Flange ASME B 16.34, ISO 7005 (Other drilling on request)
Operation By Lever, By Gear, By Electric or Pneumatic Actuator
Temperature   Metal Seat        -29…+450
 Resilient Seat    -29…+150℃

Product Detail

Product Tags

The shopper satisfaction is our primary focus on. We uphold a consistent level of professionalism, quality, credibility and repair for Massive Selection for China Tee Type Flange Three Way Segment Ball Valve 3 Ways Valve, We often supply very best quality solutions and exceptional provider for the majority of enterprise users and traders . Warmly welcome to join us, let’s innovate with each other, and fly dreams.
The shopper satisfaction is our primary focus on. We uphold a consistent level of professionalism, quality, credibility and repair for Ball Valve 3 Ways Valve, China Ball Valve, Why we can do these? Because: A, We are honest and reliable. Our items have high quality, attractive price, sufficient supply capacity and perfect service. B, Our geographical position has a big advantage . C, Various types: Welcome your inquiry, It might be highly appreciated.

Standard Material Specification

No.

Part

Material

1

Body

WCB/CF8/CF8M

2

V-port Segment

CF8/CF8M+HCr

3

Pin

304/316

4

Seat

304+STL

304+STL

316+STL

304/316+STL

5

Spring

316L

6

O-Ring

VITON

7

Bearing

304/316+PTFE

8

Lower Stem

304/316

9

O-Ring

VITON

10

Packing Gland

WCB/CF8/CF8M

11/12

Gasket

PTFE

13

Washer

Q235/304/316

14/15

Bolt

25/304/316

16

Bearing

304/316+PTFE

17

Key

304/316

18/19/20

Packing

PTFE or Graphite

21

Packing Gland

WCB/CF8/CF8M

22

Nut

Q235/304/316

23

Upper Stem

304/316

Dimensions and Weights (150LB)

Unit : (mm)

DN

A

B

b1

f

C

T

Y

L

d

h

S

K

M

Z

Wg(Kg)

1”

102

108

14.5

2

38

81

73

75

16

35

75

/

2-M10

5

5.4

1 1/4”

102

115

14.5

2

45

86

78

75

16

35

75

/

2-M10

5

7.3

1 1/2”

114

127

14.5

2

50

90

80

75

16

35

75

/

2-M10

5

8.4

2”

124

152

16.3

2

62

93

90

75

16

35

75

/

2-M10

5

10.5

2 1/2”

145

180

18

2

73

108

105

75

16

35

75

/

2-M10

5

13.2

3”

165

191

19.5

2

90

123

118

75

20

35

90

28

4-M10

6

17.7

4”

194

230

24

2

115

138

130

75

20

35

90

28

4-M10

6

24.7

5”

194

255

24.3

2

134

148

145

80

25

40

90

28

4-M10

8

34.5

6”

229

280

26

2

164

170

170

94

30

50

110

40

4-M12

8

50.7

8”

243

340

29

2

206

200

201

94

30

50

110

40

4-M12

8

72.7

10”

297

405

30.6

2

260

240

237

98

40

60

135

40

4-M16

12

116

12”

338

485

32.2

2

316

286

282

98

40

60

135

40

4-M16

12

169

14”

400

535

35.4

2

372

330

337

125

50

60

140

64

4-M16

14

249

16”

400

595

37

2

420

367

372

172

60

80

170

80

4-M20

18

326

18”

520

635

40.1

2

470

422

432

172

70

90

190

90

4-M24

20

410

20”

600

700

44

2

516

490

498

180

80

100

190

90

4-M24

22

510
