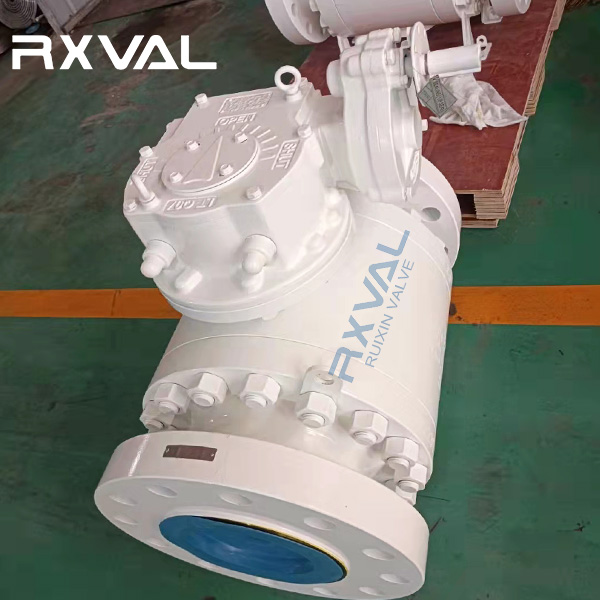

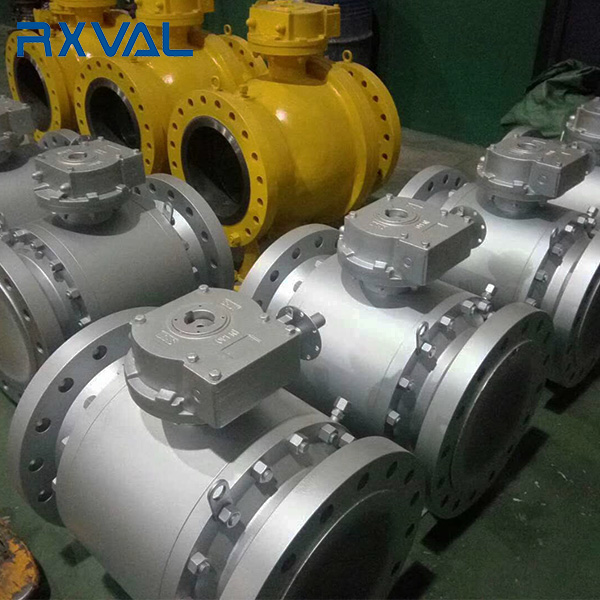

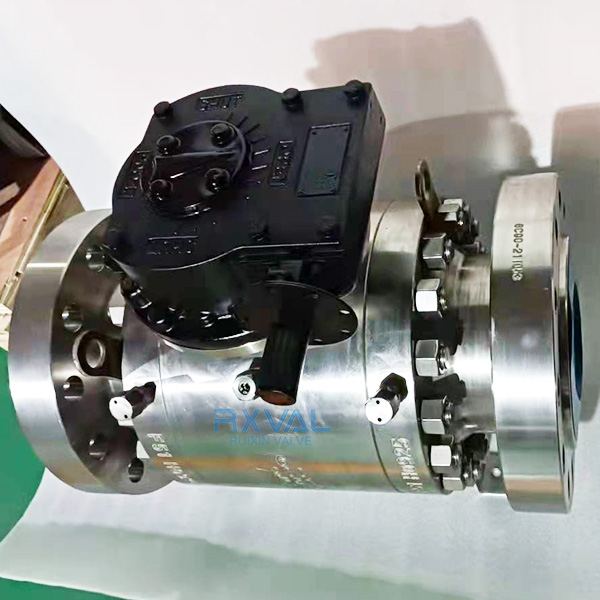

2019 Good Quality China Fully Welded Trunnion Mounted Standard Ball Valve for Nature Gas

Short Description:

Size	2 “ - 48 ”
Pressure	ANSI 150LB-2500LB
End Connection	Flange RF,RTJ,BW
Bore	Full or Reduce Bore
Body Material	STM A105, A182 304, A182 316, A182 304L, A182 316L, A182 F51, A182 F53
Ball Material	ASTM A105, A182 304, A182 316, A182 304L, A182 316L, A182 F51, A182 F53
Seat Material	PTFE, RPTFE, PEEK,NYLON,PPL Or Metal to Metal
Design	API 6D/ ASME B16.34 / API 608 / BS 5351
Face to Face	ANSI B16.10
End Flange	ANSI B16.5
BW Ends	ANSI B16.25
Fire Safe	API 607 Or API6FA
Checking & Test	API 598
Pressure-Temperature	ASME B16.34
Operation	By Lever, By Gear, By Electric or Pneumatic Actuator

Send email to us

Product Detail

Product Tags

Our well-equipped facilities and great good quality regulate throughout all stages of manufacturing enables us to guarantee total buyer gratification for 2019 Good Quality China Fully Welded Trunnion Mounted Standard Ball Valve for Nature Gas, We sincerely expect exchange and cooperation along with you. Let us move forward hand in hand and accomplish win-win situation.
Our well-equipped facilities and great good quality regulate throughout all stages of manufacturing enables us to guarantee total buyer gratification for China Trunnion Mounted Ball Valve, Valve, With nearly 30 years’ experience in business, we’re confident in superior service, quality and delivery. We warmly welcome customers from all over the world to cooperate with our company for common development.

Material Specification

Dimensions

DN	d	L	D	D1	D2	f	b	N-Φ	H	H1
50	50	178	150	120.5	92	2	14.5	4-Φ19	93	88
80	75	203	190	152.5	127	2	17.5	4-Φ19	118.5	117
100	100	229	230	190.5	157	2	22.5	8-Φ19	143.5	137
150	150	394	280	241.5	216	2	24	8-Φ22	208	178.5
200	201	457	345	298.5	270	2	27	8-Φ22	248	222
250	252	533	405	362	324	2	29	12-Φ25	294	265
300	303	610	485	432	381	2	30.5	12-Φ25	344.5	308.5
350	334	686	535	476	413	2	33.5	12-Φ29	377	334
400	385	762	595	540	470	2	35	16-Φ29	418	375
450	436	864	635	578	533	2	38.5	16-Φ32	463	410
500	487	914	700	635	584	2	41.5	20-Φ32	502	458
600	589	1067	815	749.5	692	2	46.5	20-Φ35	586	534
650	633	1143	870	806.5	749	2	68	24-Φ35	626	582
700	684	1245	927	864	800	2	71	28-Φ35	644	605
750	735	1295	984	914.5	857	2	75	28-Φ35	720	672
800	779	1372	1060	978	914	2	81	28-Φ41	742	704
900	874	1524	1168	1086	1022	2	90	32-Φ41	839	796
1000	976	1753	1289	1200	1124	2	90	36-Φ41	913.5	866
1050	1020	1855	1346	1257	1194	2	97	36-Φ41	943	881
1200	1166	2134	1511	1422	1359	2	108	44-Φ41	1097	1016
1400	1360	2489	1746	1651	1575	2	124	48-Φ4178	1302	1186

More Information

Our well-equipped facilities and great good quality regulate throughout all stages of manufacturing enables us to guarantee total buyer gratification for 2019 Good Quality China Fully Welded Trunnion Mounted Standard Ball Valve for Nature Gas, We sincerely expect exchange and cooperation along with you. Let us move forward hand in hand and accomplish win-win situation.
2019 Good Quality China Trunnion Mounted Ball Valve, Valve, With nearly 30 years’ experience in business, we’re confident in superior service, quality and delivery. We warmly welcome customers from all over the world to cooperate with our company for common development.
